CL014 - Force sensor

• tension and compression mode
• S-shape transducer
• protected: IP 64
• sensitivity: 1 mV/V or 2 mV/V
• non-linearity: 0,5 %
• measuring range [kN]: 1; 2; 5; 10; 20; 50

CL14U - Force sensor

• tension and compression
• non-linearity: 0,5%
• to build precise measuring systems for static and slow-changing forces in range up to 5 kHz
• temperature range: -20…+100ºC
• protected by: IP40, IP65
• range [kN]: 0,05; 0,1;0,2;0,5;1;2;5;10;20;50;100

CL14 - High precision force sensor

• tension and compression
• to build precise measuring systems for static and slow-changing forces in range up to 5 kHz
• accuracy class: 0,5 or 1 of FS
• temperature range: -20…+100ºC
• protected by: IP40 or IP68
• range [kN]: 0,05; 0,1;0,2;0,5;1;2;5;10;20;50;100; 200

CL14d - Force sensor

• tension
• accuracy: 0,05 or 0,1 % of nominal range
• range [kN]: 20; 50; 75; 100; 150; 200

CL15 - Force sensor

• tension
• to build precise measuring systems for static and slow-changing forces in range up to 5 kHz
• non-linearity: 0,5%
• temperature range: -20…+100ºC
• protected by: IP40, IP65
• range [kN]: 5, 10, 20, 50, 100, 200

CL15K - Force sensor for locomotives

• compressive force measurement
• protected by: IP40 or IP65
• non-linearity 0,5%
• measurement range 700 kN

CL16m - Force sensor

• compression forces
• accuracy: 0,2 or 0,5% of nominal range
• temperature range: -20...+80°C
• protected by IP64
• measuring range [kN]: 50; 100; 200; 300; 400; 500; 1200

CL 16me - Force sensor

• compressive force measurement
• measuring only the axial component of the aggravating
• accuracy: 0,2% or 0,5% of nominal range
• as an option also with amplifier (current or voltage output) integrated in sensor housing
• measuring range [kN]: 200; 300; 400; 500; 1200

CL16U - Force sensor

• tension and compression
• to build precise measuring systems for static and slow-changing forces in range up to 5 kHz
• low profile
• non-linearity: 0,5%
• temperature range: -20…+100ºC
• protected by: IP40, IP67
• range [kN]: 1; 2; 5; 10; 20; 50; 100; 200; 500

CL16 - High precision force sensor

• tension and compression
• to build precise measuring systems for static and slow-changing forces in range up to 5 kHz
• low profile
• accuracy class: 1 reffered to measurement
• temperature range: +25ºC
• protected by: IP40, IP68
• range [kN]: 1; 2; 5; 10; 20; 50; 100; 200; 500

CL16md - High precision force sensor

• tension and compession forces
• measuring range: 1kN, 2kN, 5kN; 10kN; 20 kN; 50kN; 100kN; 200kN; 250kN

CL17p - Force sensor

• to build precise measuring systems for static and slow-changing forces in range up to 5 kHz
• independence from non-axial force applying
• non-linearity: 0,5%
• temperature range: -20…+80ºC
• protected by: IP40, IP65
• range [kN]: 0,05; 0,1; 0,2; 0,5; 1; 2; 5


CL17pm - Force sensor

• platform load cell
• low profile
• smal dimentions
• accuracy: 0,05 or 0,1 of FS
• temperature range: -20...+80C
• protected by IP65
• measuring range (kN): 0,01; 0,02; 0,05; 0,1; 0,2; 0,5; 1

CL17s - Force sensor

• working on shear
• to build precise measuring systems for static and slow-changing forces in range up to 5 kHz
• non-linearity: 0,5%
• temperature range: -20…+80ºC
• protected by: IP65
• range [kN]: 5,10,20,50

CL18U - Force sensor

• working on tension
• to build precise measuring systems for static and slow-changing forces in range up to5 kHz
• non-linearity: 0,5%
• temperature range: -20…+100ºC
• protected by: IP40, IP65
• range [kN]: 10, 20, 50, 100, 500, 1000, 2000, 3000

CL18 T - Force sensor for ropes and rods

• force measurement in ropes and rods
• non-linearity 0,5 %
• measurement ranges: 10; 20; 50; 100; 200; 500; 1000; 2000; 3000 kN

CL18 - High precision force sensor

• working on tension
• to build precise measuring systems for static and slow-changing forces in range up to 5 kHz
• accuracy class: 1
• temperature range: 25ºC +/- 10°C
• protected: IP40, IP66
• range [kN]: 10, 20, 50, 100, 500, 1000, 2000, 3000

CL18Tg-6-3-400kN - Track tension sensor for stackers

CL19 - Force sensor to railroad switch

• mounted in place of integrated connector pin and drive slide
• tension and compression
• non-linearity: 0,5%
• temperature range: -20…+100ºC
• protected by: IP40, IP65
• range: 5; 10; 20 kN

CL19H - Sensor for measuring resistance force of rail turnouts

• measurement of force in both directions, adjusting the crossover
• applicable in place of connecting the pin with a slider
• measuring range [kN]: 20; 30; 60

CL19E - Sensor with electronic for measuring resistance force of rail turnouts

CL20 - Bolt Force Sensor

• measuring the compressive static and dynamic forces
• applicable for bolts with diameter range from M8 up to M20
• measuring range: from 25 kN up to 250 kN

CL21 - Force sensor

• compression forces
• low dimensions
• non-linearity: 0,5%
• temperature range: -20…+100ºC
• low profile
• range: 1; 2; 5; 10; 20; 50; 100; 200 kN

CL21ms-rs - Miniature force sensor

• tension and compression
• measuring ranges [kN]: 0,2; 0,5; 1; 2

CL 21ms - Miniature force sensor

• compression force measurement
• diameter 20 mm
• measurement range [kN]: 0,2; 0,5; 1; 2; 5

CL23/CL23M - Force sensor for brake pedal

• force measurement on brake pedal
• version with magnetic clamp (CL 23M)
• range: 1 kN

CL21rse - Force sensor with integrated amplifier

• tension and compression
• measuring range: 1kN; 2kN; 5kN; 10kN
• integrated amplifier

CL21rs - Force sensor

• tension and compression
• measuring range [kN]: 1; 2; 5; 10
• both threads can be customized

M740 - Load cell

• manufactured by Utilcell
• nominal capacity: 15t - 20t - 25t - 30t - 40t - 60t - 100t - 200t - 400t - 600t
• sensitivity: 2 mV/V
• compression load cell, selfcentering column
• 4000 divisions O.I.M.L (digital model 740D, nominals: 15t...60t), 1000 divisions O.I.M.L (model 740, nominals: 100t...600t)
• stainless steel construction
• hermetically welded (IP68 or IP69K - protected against washing with water under high pressure)
• lightning protection
• applications: high capacity weighing systems, truck scales
• optional available also in ATEX version for zone 0-1-2 (gas) and 20-21-22 (dust)
• available adapters: 74901 (15t...40t), 74905 (60t), 74904 (100t...200t), 74911 (400t), 74912 (600t)

M620 - Load cell

• manufactured by Utilcell
• tension/compression load cell
• nominal capacity: 50kg - 100kg - 150kg - 200kg - 300kg - 500kg - 750kg - 1000kg - 1500kg - 2000kg - 3000kg - 5000kg - 6000kg
• nominal sensitivity: 2 mV/V
• 3000 divisions O.I.M.L.
• measuring element from steel alloy
• protected IP67
• applications: crane scales, force measurement in test equipment, suspended weighing in tanks, hoppers and belt conveyor scales

M490 - Load cell for use in high temperature

• manufactured by Utilcell
• nominal capacity: 40t  - 50t  - 100t  - 150t  - 200t
• double shear load cell
• service temperature up to 150ºC
• input cable connection through hermetic connector (IP67)
• cable length 15 m
• applications: ladle turret and ladle ferries scales, scrap bucket, roller table, tundish cars, hopper and silos in high temperature environments for the metal industry

Adapters for M460

• 46901: steel alloy zinc-plated; range:  5...20 t
• 46902: steel alloy zinc-plated; range 30...50 t
• 46903: steel alloy zinc-plated; range 75...100 t
• 46901i: stainless steel; range: 5...20 t
• 46902i: stainless steel: range: 30...50 t
• 46903i: stainless steel: range: 75...100 t

M460 - Load cell

• manufactured by Utilcell
• nominal capacity: 5t - 10t - 20t - 30t - 50t - 75t - 100t
• sensitivity: 2mV/V
• double shear load cell
• 3000 divisions O.I.M.L
• made of stainless steel
• hermetically sealed, fully welded (IP68)
• cable length 12 m
• applications: tank and silos weighing systems with highly linear and low profile requirements
• optional available also in ATEX version for zone 0-1-2 (gas) and 20-21-22 (dust)
• available adapters: 46901 (5...20t), 46902 (30...50t) and 46903 (75...100t) made of stainless steel or steel alloy zinc-plated

M420 - Load cell

• manufactured by Utilcell
• nominal capacity: 2,5t - 5t - 10t - 20t - 30t
• nominal sensitivity: 2 mV/V
• compression load cell
• accuracy: 1000 O.I.M.L
• measuring element from stainless steel
• hermetically sealed, fully welded (IP68)
• easy installation
• application: tank and silos weigning systems with low profile requirements
• operating range: -50…+70°C
• available in ATEX version (optional) zone 0-1-2 (gas) and 20-21-22 (dust)

M350 - Load cell

• manufactured by Utilcell
• nominal capacities: 300kg - 500kg - 750kg - 1000kg - 1500kg - 2000kg - 3000kg - 5000kg - 7500kg - 10000kg
• sensitivity: 2 mV/V
• shear beam load cell
• 3000 divisions O.I.M.L
• versions: M350i (300...5000kg) stainless steel, hermetically sealed, fully welded (IP68), M350a (300...5000kg) stainless steel, silicone sealing (IP66), M350n (300...2000kg) nickel-plated steel alloy, silicone sealing (IP66), M350 (7500...10000kg) stainless steel, hermetically sealed, fully welded (IP68 or IP69K - protected against washing with water under high pressure)
• cable length: 5 m (nominals: 300...5000kg), 10 m (nominals 7500...10000kg)
• applications: four load cells platforms, tanks and hopper weighing
• up to nominal capacity 5000kg available also in ATEX version for zone 0-1-2 (gas) and 20-21-22 (dust)
• available adapters: 35901, 35902, 35903, 35909-35912

M340 - Load cell

• manufactured by Utilcell
• nominal capacity: 15kg - 30kg - 50kg - 75kg - 100kg - 150kg - 200kg - 250kg - 300kg - 500kg - 750kg - 1000kg - 1500kg
• nominal sensitivity: 2 mV/V
• bending beam load cell
• 3000 divisions O.I.M.L (for nominal: 15kg...1000kg),  2000 divisions O.I.M.L (for nominal 1500kg)
• fully stainless steel
• hermetically sealed, fully welded (IP68)
• applications: platform scales 4 cells, packing and filling machines mixers, tanks and hoppers
• available in ATEX version (optional) zone 0-1-2 (gas) and 20-21-22 (dust)
• available accessories: 30904/30905 and 34906/34903, 34905 + RO12x1.75, 35901

Accessories for M300 and M340

• 30904:  silent-block bearing up to 50kg
• 30905:  silent-block bearing up to 300kg
• 30906:  silent-block bearing up to 500kg
• 30903:  base plate steel zinc-plated
• 30903i:  base plate stainless steel
• all these accessories can be used for M300 and M340

Adapter 30907 for M300

• mounting-kit lift-off prevention for M300
• range from 5kg up to 500kg
• material: steel alloy zinc-plated (30907) or stainless steel (30907i)

M300 - Load cell

• manufactured by Utilcell
• nominal capacity: 5kg - 10kg - 20kg - 30kg - 50kg - 75kg - 100kg - 150kg - 200kg - 250kg - 300kg - 500kg
• nominal sensitivity: 2mV/V
• bending beam load cell
• 3000 divisions O.I.M.L
• fully stainless steel
• hermetically sealed, fully welded (IP68 and IP69
• available in ATEX version (optional) zone 0-1-2 (gas) and 20-21-22 (dust)
• available accessories: 30901 + RO12x1.75 or 30907(i)

M240 - Load cell

• manufactured by Utilcell
• range: 5kg - 7,5kg - 10kg - 15kg - 20kg - 35kg
• double bending beam load cell
• 4000 divisions O.I.M.L.
• single point cell
• protected IP66
• applications: platforms up to 500 x 500 mm

M190 - Load cell

• double bending beam load cell from Utilcell
• nominal capacities: 15kg - 20kg - 30kg - 50kg - 75kg - 120kg - 200kg - 250kg - 350kg - 400kg
• nominal sensitivity: 2mV/V
• versions: M190a (50...400kg) - nickel-plated steel alloy, IP66, 4000 O.I.M.L. , M190i (15...400kg) - stainless steel, IP68, 3000 O.I.M.L.
• cable length: 5 m
• applications: direct platform up to 800 x 800 mm, filling scales
• available in ATEX zone 0-1-2 (gas) and 20-21-22 (dust)

M140 - Load cell

• manufactured by Utilcell
• nominal capacity: 3kg - 5kg - 8kg - 10kg - 15kg - 20kg - 30kg - 50kg - 75kg - 100kg
• nominal sensitivity: 2 mV/V +/- 10%
• double bending beam load cell
• 3000 divisions O.I.M.L
• measuring element from aluminium
• protected: IP66
• applications: direct platform up to 400 x 440 mm, filling scales

M104 - Load cell

• manufactured by Utilcell
• nominal capacity: 0,3kg - 0,6kg - 1,2kg - 3kg
• nominal sensitivity: 0,9 ± 0,2 mV/V
• 3000 divisions O.I.M.L
• measuring element from aluminium
• protected: IP66
• applications: direct platform up to 200 x 200 mm

M102 - Load cell

• manufactured by Utilcell
• nominal capacities: 5kg - 8 kg - 10kg - 15kg - 20kg - 30kg - 50kg
• nominal sensitivity: 2 +/-10% mV/V
• double bending load cell
• 3000 divisions O.I.M.L
• protected IP66
• applications: direct platform up to 350 x 350 mm, filling scales

CL21M - Load cell

• for compressive forces
• capacity range [t]: 0,1; 0,2; 0,5; 1; 2; 5; 10; 20
• protected: IP67

CL18M - Load cell

• vertical compression forces
• for high load capacity platform scales
• non-linearity: 0,5%
• temperature range: -20ºC...+80ºC
• protected: IP40, IP68
• capacity range [t]: 1; 2; 5; 10; 20; 50; 100; 200; 500

CL17Ms - Load cell

• vertical compression forces
• for weighning systems
• non-linearity: 0,5%
• temperature range: -20ºC…+80ºC
• protected: IP66
• capacity range [t]: 0,5; 1; 2; 5

CL17Mp - Load cell

• vertical compression forces
• for platform one sensor  and low range scales
• non-linearity: 0,5%
• temperature range: -20ºC…+80ºC
• protected: IP67
• capacity range [kg]: 1; 2; 5; 10; 20; 50; 100; 200; 500

CL16M - Load cell

• tension and compression
• insensitive on non-axial force
• low profile
• non-linearity: 0,5%
• temperature range: -20…+80ºC
• protected: IP40, IP68
• Capacity range [t]: 0,1; 0,2; 0,5; 1; 2; 5; 10; 20; 50

CL14M - Load cell

• tension and compression
• to build weighing systems
• non-linearity: 0,5%
• temperature range: -20…+80ºC
• protected: IP40, IP68
• capacity range [t]: 0,005; 0,01; 0,02; 0,05; 0,1; 0,2; 0,5; 1; 2; 5; 10

M750 - Load cell

• double shear load cell from Utilcell
• nominal capacities: 7,5t - 10t - 15t - 20t - 25t - 30t
• nominal sensitivity: 2 mV/V
• 3000 O.I.M.L.
• versions: M750a: steel alloy epoxy painted, M750i: stainless steel
• hermetic, fully welded, protected: IP68
• cable length: 18 m
• 6 wire (sense) electrical connection
• applications: tanks and silos with highly linear and low profile requirements
• available in ATEX zone 0-1-2 (gas) and 20-21-22 (dust)

PIN - Measuring load pin

• manufactured by Utilcell on demand
• nominal capacities and diameters customized
• made of high tensile stainless steel
• protected: IP66
• applications: overload protection, weighing, force monitoring, cranes, load limiting in conveyor systems
• cable length: 5m
• optional:

    * high temperature up to180ºC

    * integrated amplified current outputs (0/4...20mA) or voltage outputs (-10...0...+10V)

    * protected IP68

CL 22 Torque sensor

• Torque sensor for controll and adjustment of torque wrenches
• Bipolar torque measurement
• High efficiency in conversion of torque in electric signall
• Measurement symmetry of different orientation torque
• Measuring sleeve as a measuring element
• Wide temperature range
• Range [Nm]: 10,20,50,100,200,500,1000,2000,3000

CL 165 - Torque Meter

• Precise measurement of static torque
• Functions: min/max storage, tare
• PC interface RS 485
• Optional clic mechanism with change-overable sense of rotation
• Optional driving ends
• Range: ± 20 Nm

CL16 Multiaxis force and torque sensor

• force and torque measurement in axis Fx,Fy,Fz,Mx,My,Mz
• applied by testing vehicles' suspentions
• integrated 6-channel amplifier

CL24 - One-Axis force and torque sensor

• force and torque measurement along one axis drive shafts
• nominal capacities: 2000 Nm/13 kN ; 200 Nm/6,5 kN or customized
• accuracy 0,5 or 1 % (to the measurement result in range from 10% up to 100% of nominal)

CL 1 - Relative pressure sensor

• For hydraulic and pneumatic systems
• Working in non-aggressive liquids and gases
• High stability and repeatability
• Accuracy: 0,2 or 0,5
• Temperature range: -20…+45ºC
• Protection class: IP40 or IP67
• Range [MPa]: 0,10; 0,24; 0,64; 1,0; 2,4; 6,4; 10; 24; 64

CL 1 L - Piezoresistive relative pressure sensor

• For hydraulic and pneumatic systems
• Working in aggressive liquids and gases
• High stability and repeatability
• Accuracy: 0,2 or 0,5
• Temperature range: -5…+45ºC
• Protection class: IP40 or IP67
• Range [MPa]: 0,01; 0,05; 0,10; 0,24; 0,64; 1,0; 2,4; 6,4; 10; 24; 64

CL 1 M - Relative pressure sensor

• Use in media with high density
• High stability and repeatability
• Accuracy: 0,2 or 0,5
• Temperature range: -20…+45ºC
• Protection class: IP40 or IP67
• Range [MPa]: 0,64; 1,00; 2,40; 6,40; 10; 24; 64

CL 2 - Differential pressure sensor

• For hydraulic and pneumatic systems
• Working in non-aggressive liquids and gases
• High stability and repeatability
• Accuracy: 0,5 or 1
• Temperature range: -20…+45ºC
• Protection class: IP40 or IP67
• Range [MPa]: 0,10; 0,24; 0,64; 1,00; 2,40; 6,40; 10; 24; 64

CL1w - relative pressure sensor

• Working in non-aggressive liquids and gases
• High stability and repeatability
• Accuracy: 0,2 or 0,5
• Temperature range: -20...+45 C
• Protection class: IP40 or IP67
• Range [MPa]: 64; 100

CL BF1 - High pressure sensor

• High pressure hydraulic main lines
• Other applications with high pressure measurement
• High stability and reliability
• Accuracy: 0,5 or 1
• Temperature range: -20…+45ºC
• Protection class: IP40
• Range [MPa]: 100; 240

CL BF2 - High pressure sensor

• High pressure hydraulic main lines
• Other applications with high pressure measurement
• High stability and reliability
• Accuracy: 0,5 or 1
• Temperature range: -20…+45ºC
• Protection class: IP40
• Range [MPa]: 100; 240; 640; 1000

CL 5 - injection pressure sensor

Range [MPa]: 64; 70; 100
Temperature range [ ºC]: -20 up to +60
Inaccuracy: 0,5 %

Suitable for:
diagnostic of combustion locomotive motors

CL25(100÷230/50) - Extensometer

CL 25 (12,5/25/37,5 mm) - Strain sensor

• Controll of material stresses for tension loading
• Allowable strain: 150%
• Nominal sensivity: 1±0,1 mV/V
• Excitation: 2 ÷ 20 V
• Range: 12,5/25/37,5 mm

CL 25 (0,4 mm) - Strain sensor

• Controll of material stresses for tension loading
• Allowable strain: 150%
• Nominal sensivity: 1±0,1 mV/V
• Excitation: 2 ÷ 20 V
• Range: 0.4 mm

CL 99 - Terminal box for transducers

Connecting of several weight load cells or force sensors to an amplifier or a measuring instrument.

CL 100P - Precise measuring amplifier

• Working direct with single transducer or with several using terminal box
• Vibration resistant, dust and splash proof
• Transmission band:  200 Hz
• Supply voltage: 230 V AC

CL72-3I - Transducer amplifier

Transducer amplifier CL72-3I can be integrated in a strain gauge sensor housing or can be offer as an independent amplifier in housing.

• accuracy: 0,02% of nominal range
• power supply 24 Vdc
• sensor voltage supply 5 V or current supply 2 mA
• current output 0 - 20 mA
• operating temperature range from 40°C up to 85 °C

CL72-3U - Transducer amplifier

Transducer amplifier CL72-3U can be integrated in strain gauge sensor housing or can be offer as an independent amplifier in housing.

• accuracy: 0,02%  of nominal range
• power supply 24 Vdc
• sensor voltage supply 5 V
• voltage output 10V
• operating temperature range from -40°C up to 85°C

CL 10D - DIN 35 amplifier

• signal gaining from a single strain gage sensor
• mountabe on a DIN 35
• temperature range: -25 ÷ 65 ºC
• voltage 24 VDC

CL430 - Digital transducer of signal from strain gauge sensors

• processing and direct digitalisation of signal from strain gauge sensors
• isolated RS485 for transfer of measurement results from the sensor
• programming of transducer parameters by use of RS485
• measurement speed from 1,25 up to 200 samples per second
• available versions: transducer in a housing or an unit integrated in a strain gauge sensor

CL 434 - Instrument for 4 strain gauge sensors

CL460 - Multi-channel data logger for strain gauge sensors

• data logging from several strain gauges at the same time
• up to 7 memory banks for strain gauge parameters
• small version (from 2 up to 8 strain gauge inputs)
• full version ( from 9 up to 16 strain gauge inputs)
• data transfer to PC via USB
• programming of parameters from the keyboard
• optionally 4 or 8 digital inputs
• optionally 4 or 8 relay outputs

CL450 - Data logger

• data logger e.g. for force transducer

CL166 - Single channel meter

• digital single channe meter for measuring signals from a strain gauge or potentiometric sensor
• OLED display
• avaraging and saving measurements
• min. and max. indication
• parameters memory for up to 127 sensors
• battery operated
• USB port to computer connection

CL162z-DW - Miernik - rejestrator pomiarów z jednego czujnika tensometrycznego

• jednokanałowa rejestracja pomiarów z jednego czujnika tensometrycznego
• korekcja nieliniowości czujnika
• tarowanie i wyswietlanie wartości min. i maks.
• łącze RS232 lub RS485

CL162ze - Display for strain gauge transducers

• to use with external strain gauge transducers
• up to 31 memory banks of transducers' parameters
• correction of transducers nonlinearity as a function
• tare, min/max values, indication hold
• RS232 or RS485 (optional) and RS/USB converter (optional)
• battery charger (optional)

CL17L/14÷24 - Rope tension gauge

• for rope diameter from 14 mm up to 24 mm
• force range up to 100 kN

CL17L/5÷22 - Rope tension gauge

• for rope diameter from 5 mm up to 22 mm
• force range up to 40 kN

CL17L/7÷10 - Rope tension gauge

• for rope diameter from 7 mm up to 10 mm
• force range up to 7 kN

CL17L/5÷6,5 - Rope tension gauge

• for rope diameter from 5 mm up to 6,5 mm
• force range up to 3 kN

CL17L/1,5-4,5 - Rope tension gauge

• for rope diameter from 1,5 mm up to 4,5 mm
• force range up to 1 kN

Door energy gauge CLMED02

Door energy gauge CLMED01

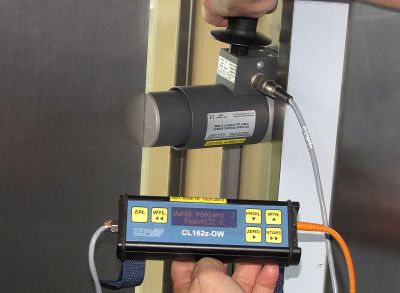

CLMED 01 allows to measure force, which is needed for stopping closing automatic doors and to measure those kinetic energy.

• measuring force range up to 1000 N
• measuring energy range up to 15 J
• software for data analising
• battery-operated

Applications: force measurement by closing doors in lifts, buses,  rail-coaches, garages.

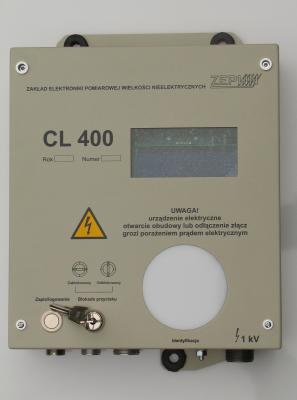

CL 400 - Fuel consumption logger in combustion locomotive

• Monitoring of fuel consumption
• Monitoring of fuel quantity in tank
• Mountable in each combustion locomotive

Miernik wagowy SMART ATEX

• certyfikat ATEX do pracy w strefach zagrożonych wybuchem 2 dla gazów i stref 21-22 dla pyłów
• aprobata OIML R76 & EN 45501
• wysoka rozdzielczość: 24 bity A/D, 16 milionów działek wewnętrznych; 100.000 działek zewnętrznych
• wyświetlacz LED: 7 cyfr 20 mm
• współpraca z PC lub drukarką przez port RS-232
• zasilanie 230 V AC lub 12 V DC
• korekcja nieliniowości

Zastosowanie: do wag przemysłowych, platformowych, paletowych, samochodowych, zbiorników i silosów.

Opcjonalnie możliwe: zegar, 4 wejścia cyfrowe i 4 wyjścia cyfrowe, wyjścia analogowe, port RS-485.

CL400MW - System do kontroli zużycia paliwa w maszynach do budowy i utrzymania toru kolejowego

• zastosowanie do doraźnej lub ciągłej kontroli zużycia paliwa
• umożliwia porównanie ze zużyciem uzasadnionym praca maszyny
• rejestruje nagłe ubytki paliwa
• rejestruje ingenrencje w system rejestracji
• pomaga ograniczyć zużycie paliwa

Software CL BWB for testing building materials

Program CLBWM - DEMO

Software CL BWM for testing mechanical properties

Software CL BWM is assigned for testing metals, alloys and welds using testing machines measuring force and displacement.

• testing by static tensile forces
• logging of properties, visualisation and analysys
• data storage and printout
• sensor calibration with non-linearity correction
• switch on/off the testing machines
• monitoring of stress, force, extension, measurement time and speed of stress growth in the course of measurement

Systems based on ZEPWN products and software

To support You in technical items by ordering advanced measurement systems, dedicated software or specials ZEPWN engeeniers are at Your disposal

Introduced systems based on ZEPWN products and software:

1. Software for inspection of diesel locomotives in diagnostic stations ZNTK Kraków, PTK Rybnik, LHS Zamość, PKP Cargo Warszawa. Software allows to measure and record locomotive parameters, e.g.: fuel consumption, peak firing pressure.

2. Software for engine test house of helicopter reaction motors TW2 i TW3. Measurement of pressure, angle, displacement and temperature.

3. Software and measurement systems for locomotives buffers and springs in ZNTK Łapy. Force and displacement measurement.

4. Test stand for vehicle suspension, power units and springs in PIMOT. Measurement of pressure, temperature, force, torque and rotation speed.

5. Portable stand with software for testing equipment to control vehicle suspensions made for Motor Transport Institute (ITS). Used EUSAMA-method.

6. Force standards for calibration of automotive diagnostic devices for ITS.

7. Software for force measurement in wind tunnel made for Military Technical Academy.

8. Measurement systems and software for testing stand examining ropes strength made for Central Mining Institute. Force and displacement measurement. Software allows to record retionship between object tension force and its extension, further visualisation of this process and measurement data aquisition.

9. Force and displacement measurement system on wicket gates  in water-power plant made for Power Engineering Institute in Warsaw.

10. Laboratory system for testing protection of explosion-proof elements made for coal-mine Barbara. Measurement and recording of explosion pressure.

11. Software for testing dumper springs of rail cars in Warsaw underground.

Program CL_AC_RS

• umożliwia odczyt wyników z mierników CL300 lub z karty pomiarowej (firmy National Instruments)
• maksymalna prędkość rejestracji: 10 razy na sekundę
• wirtualne wskaźniki
• zapis wyników do pilku tekstowego
• bez wizualizacji graficznej
• przekazywany bezpłatnie na życzenie Nabywcy CL300 lub analogowego toru pomiarowego

Program REJESTRATOR

• uniwersalny program rejestrujący wielkości analogowe z karty pomiarowej (firmy National Instruments)
• minimalny krok rejestracji: 0,1 ms dla maksymalnie 8 kanałów, 1 ms dla maksymalnie 16 kanałów
• definiowane progi wyzwalania
• wirtualne wskaźniki
• zapis i odczyt wyników z pliku tekstowego
• wizualizacja graficzna

Program REJESTRATOR_CL430

Equipment for load tests of current aggregate in diesel locomotives

Equipment for load tests of current aggragate in diesel locomotives allows to check and adjust:

• external characteristic of current aggregate
• characterictic of power gradation
• regulation of smooth starting
• engine start-up

and to measure:

• fuel injection
• compression pressure
• emissions
• brakes efficiency

CL412 - Hydrostatic fuel probe

CL 411T - Hydrostatic fuel probe

• measurement of fuel quantity in tank
• capacitive sensor with microprocessor
• accuracy 0,1 %
• output signal with RS 485
• regulated length

CL 411 - Hydrostatic fuel probe

• measurement of fuel quantity in tank
• capacitive sensor with microprocessor
• accuracy 0,1 %
• output signal with RS 485

Drawing dies and adapters for force meters

CL 570 D - Control force meter

• Force standard withaccuracy 0,5 or 1
• Calibrating of operational force meters
• Adjusting of testing machines
• Cooperates replaceable with 4 force sensors type CL 14, CL 16 and CL 18
• Range [kN]: 0,05; 0,1; 0,2; 0,5; 1; 2; 5; 10; 20; 50; 100

CL 162 z - Force meter tension and compression measuring

• Tension and compression measuring up to 750 N
• Data output RS 485 to PC connection as an option
• Indication of maximum and minimum
• Stop function with indicated  actual force value
• Accuraccy 0,1% of full scale
• Resolution 10 000 units
• Range [N]: 100; 200; 500; 750

CL 161W - Crane scale

• measuring range: 0,1 t up to 10 t

CL 161 - Force meter tension measuring

• To use as suspension scale
• Integrated and certified lifting slings
• Infrared remote control as an optionl
• Data output RS 485 to PC connection as an option
• Indication of maximum and minimum
• Accuraccy 0,1% of full scale
• Range [kN]: 5; 10; 20; 100

Torque transducer measuring position

• for testing static and rotating torque
• range of testing transducers from 5 Nm to 1000 Nm
• two-way torque measurement
• stationary or mobile stand

CL 23 / CL 23 M - Force sensor on brake pedal

• Cooperates with decelerometer
• Cooperates with roller brake tester
• Version with magnetic clamp (CL 23M)

CL176 Calibration

CL 176RS

The device is a MOT measuring equipment.
CL 176RS allows to measure and record measurements and to transmit data to the PC or to the printer and print-out of measurement results.
The CL176 device allows to differentiate measurements through the windscreen or side windows.

CL 176 - Window tint meter

• measuring of glass tinting in vehicles' windows
• verification of light transmission through glass and other materials, e.g. packaging in food industry
• high accuracy
• ease-to-use

CL 170 - Decelerometer

• For measuring and recording of braking deceleration
• Adapter for one-truck vehicles
• Set includes CL 23

WN 500 - Device for controlling of inertial brake in trailers up to 5 t

• Suitable for each type of tow hook

ATEX junction box

• up to 4 or 8 load cells
• aluminium hermetic
• ATEX version zone: 0,1,2,20,21,22
• manufactured by Utilcell

CL 99 - Terminal box for transducers

For connection of several weight load cells or force sensors to one measuring instrument

Customized solutions in 2012

Information about customized solutions developed by ZEPWN in 2012 attached at the datasheet.

Customized solutions

Information about customized solutions developed by ZEPWN are attached at the datasheet.

Customized solutions

Strain gauge application on measuring elements

ZEPWN offers strain gauge applications on specific measuring elements supplied by customers.

Clients who trust us by applications were e.g.:
Astrium GmbH by Galileo Project of European Space Agency
MAN Truck and Bus Austria AG
ecms Aviation Systems GmbH Germany
Military Technical Academy Warsaw
Institute of Aviation Warsaw

CL 510 - Pannel weighing indicator

• Precise weight or force measurement
• Parallel connection of 4 sensors possible
• Protection degree IP 65

CL 161WD - Crane scales

• measuring range [t]: 2, 5, 10, 15, 20, 50, 100
• accuracy class III
• indication in kN or in t
• infrared remote control up to 15 m
• communication to PC via RS 485

SMART - Terminal wagowy

• wysoka rozdzielczość: 100.000 jednostek zewnętrznych, 50 odczytów na sekundę
• wyświetlacz LED: 7 cyfr 20 mm
• port RS-232
• napięcie zasilania: 6 V DC dla 4 czujników 350 Ohm lub dla 8 czujników 700 Ohm
• obudowa ze stali nierdzewnej z zestawem do mocowania
• korekcja liniowości
• kalibracja numeryczna w mV: umożliwia pomiar bez kalibracji przez wprowadzenie zakresu nominalnego i czułości czujników wagowych w mV/V
• W opcjach dodatkowych możliwe wykonanie:
• w obudowie IP65
• z modułem zegarowym
• 4 cyfrowe wejścia i 4 cyfrowe wyjścia
• wyjścia analogowe dla 0-5 V, 0-10 V, 0-20 mA i 4-20 mA
• zasilanie 230 V AC lub 12 V DC (9...18 V DC) 600 mA

CL600 - Precise meter for strain gauges

• for full bridge, half bridge or quarter strain gauge bridge
• one analog measuring channel
• bright OLED display
• USB connector to PC
• RS485 (MODBUS-RTU) connectors to PLC, PC or external display
• panel and housing version

CL166 - One-channel meter

• for one strain gauge or potentiometric sensor
• calibration parameters memory for up to 127 sensors
• min. and max. function
• averaging and storing of measurements
• non-volatile memory for 2047 measurements
• correction of non-linearity of sensors
• easy programming

CL11D - DIN Rail Signal Conditioner

• signal conditioning from a single strain gauge sensor and from two configurable outputs
• wide range (125 Hz  - 32 kHz)
• current or voltage output
• two relay outputs
• parameter modification by the user via USB
• correction of sensor non-linearity
• taring the signal of conditioner
• manual quick calibration of conditioner
